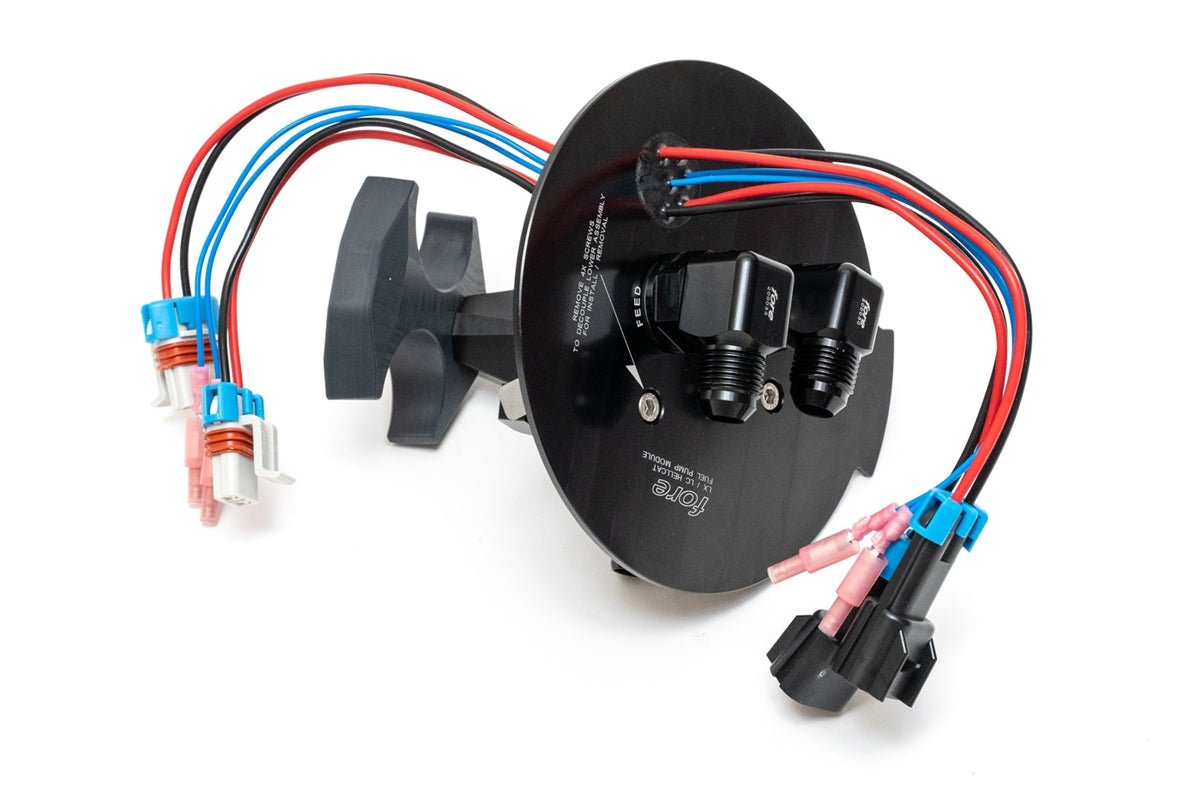

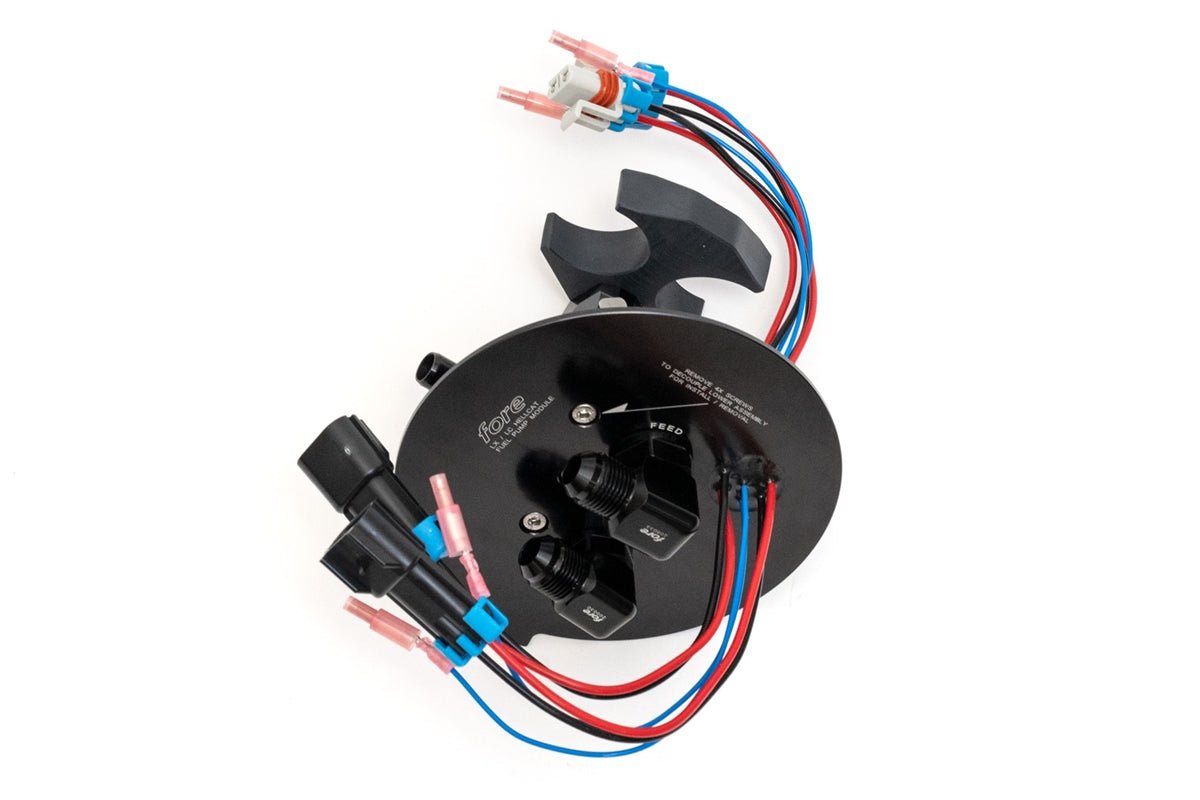

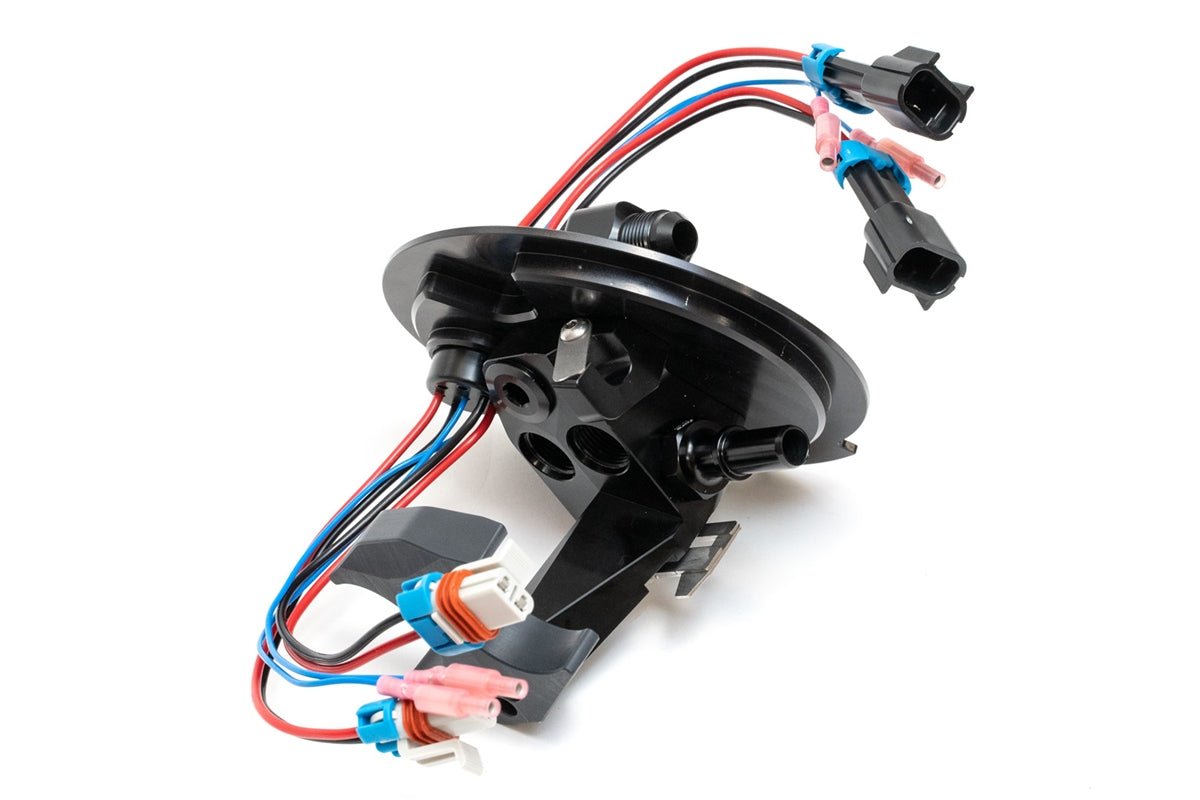

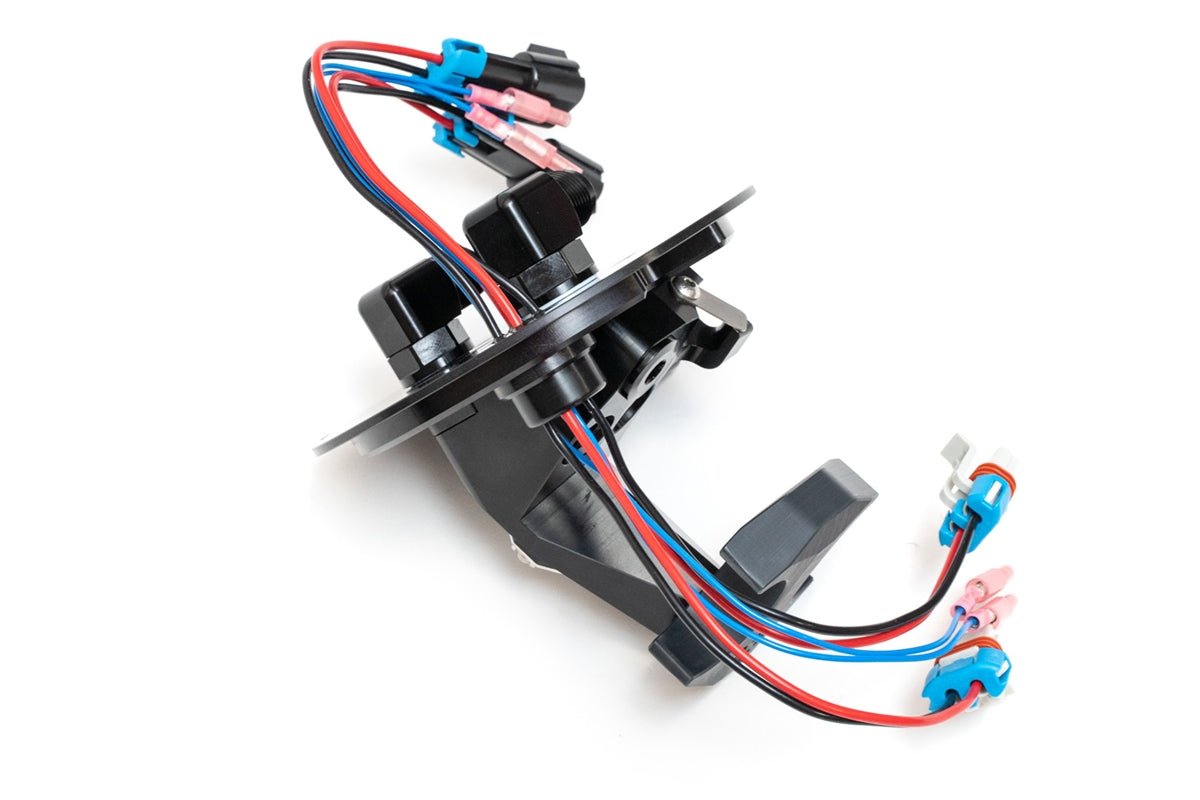

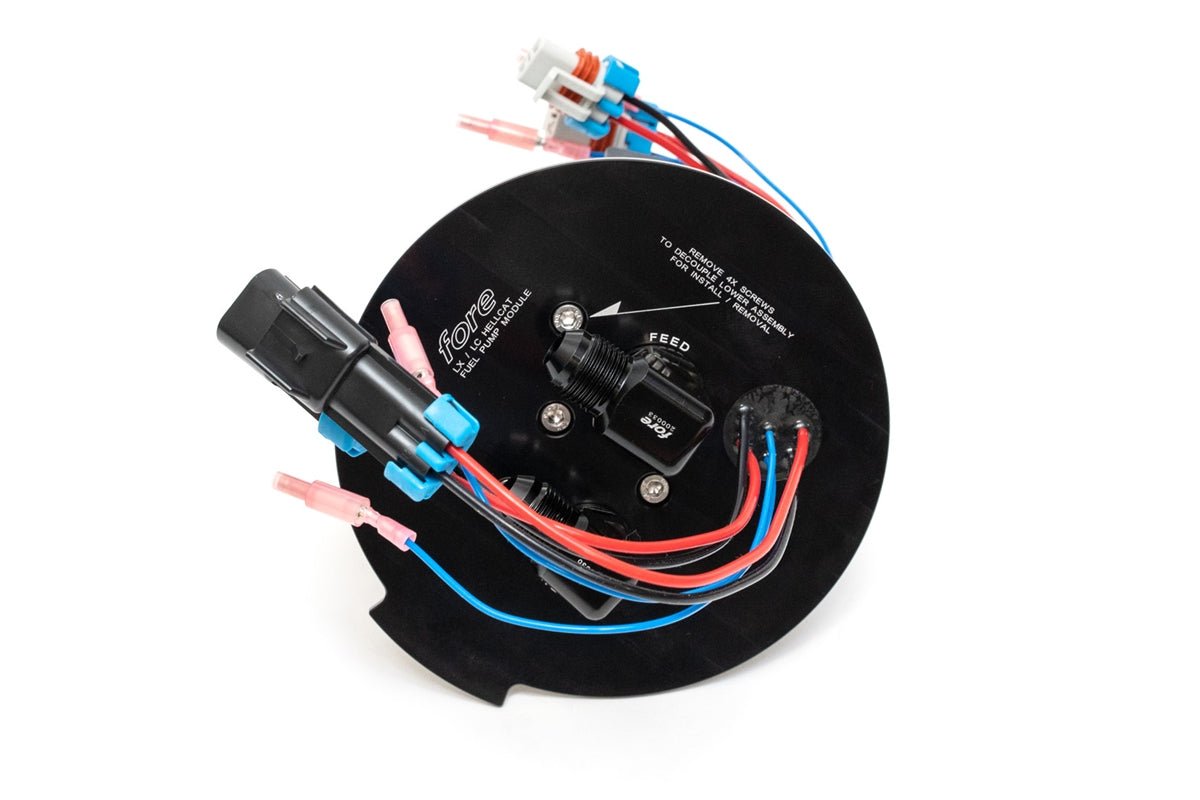

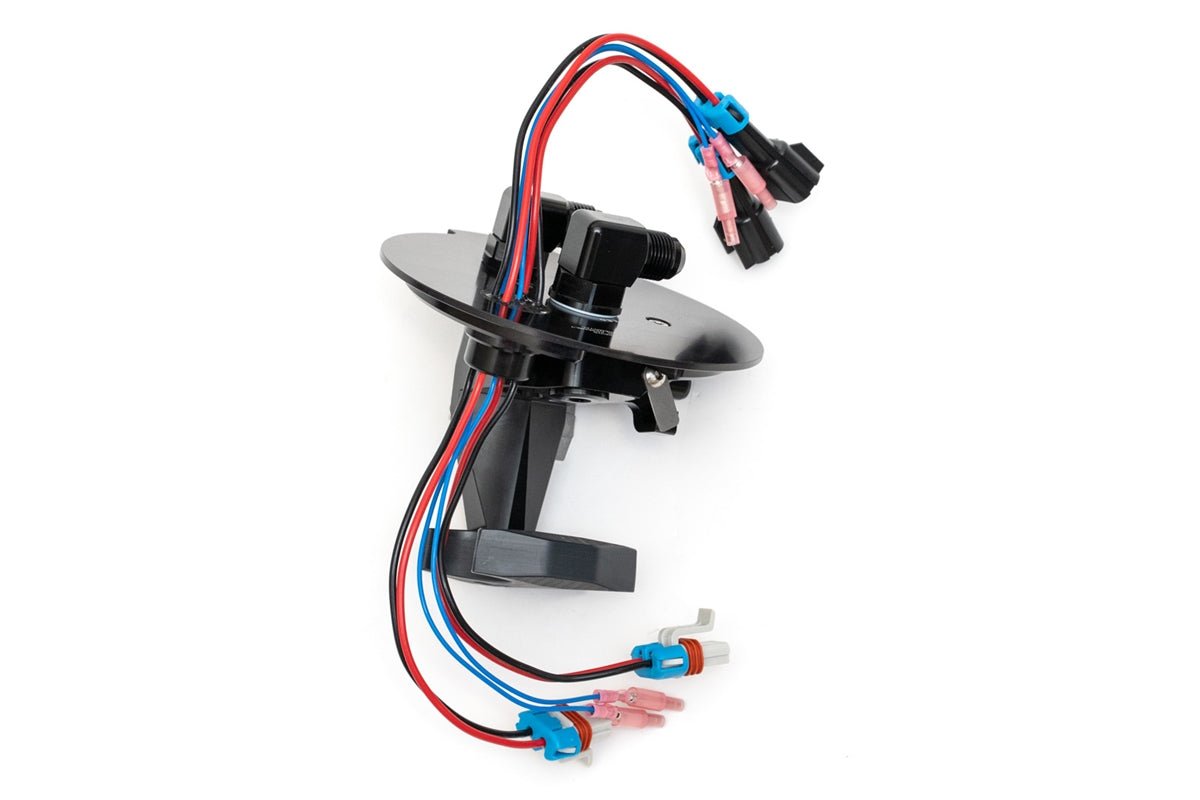

Hellcat LX Dual Pump Module, without pumps

Vendor: Fore Innovations
SKU: 69-800NW
Product Type: Fuel Pump Fitment Kits
$439.00
$439.00
Subtotal: $439.00
10 customers are viewing this product
Shipping Rates

Return Policy
Fore Innovations - Hellcat LX Dual Pump Module, without pumps - Demon Performance

Hellcat LX Dual Pump Module, without pumps

$439.00
Fore Innovations - Hellcat LX Dual Pump Module, without pumps - Demon Performance
Fore Innovations - Hellcat LX Dual Pump Module, without pumps - Demon Performance
Fore Innovations - Hellcat LX Dual Pump Module, without pumps - Demon Performance
Fore Innovations - Hellcat LX Dual Pump Module, without pumps - Demon Performance
Fore Innovations - Hellcat LX Dual Pump Module, without pumps - Demon Performance
Fore Innovations - Hellcat LX Dual Pump Module, without pumps - Demon Performance

Hellcat LX Dual Pump Module, without pumps

$439.00
Description
Description
x
TEMPORARY PRODUCT CONFIGURATION
For 2015+ Hellcat (not Demon, or SRT / RT variants)


  • Drop in pump assembly for Hellcat Charger and Challenger
  • Use with OE fuel feed line (returnless) or upgraded fuel lines (return)
  • No control support (modulation or regulation): see our complete Hellcat fuel systems or use at your own risk
  • E85 and race fuel compatible
  • Requires two F90000274 or F90000285 fuel pumps and two Walbro prefilters 125-190 be sent here for installation
  • O-ring feed and return ports (may be plugged for returnless operation)
  • Select Plug for Return Fitting for use in returnless setups


Passenger side OE Feed Outlet option
  1. Open: This will allow you use the factory feed line. Use if you wish to neglect post filtration and send coarse filtered fuel to injectors (not recommended) You will also have to use a plug on the feed and return fitting.
  2. Cap for OE outlet: use if you plan to run in a return configuration.
  3. AN-8 Male: adapts outlet of OE feed outlet (on passenger side to AN-8 male so an inline filter can be fitted)
  4. AN-10 Male: same as item #3, but with -10 adapter


NOTES ON RETURNLESS CONFIGURATION
  • Pressure regulation and flow output is [in car] electronic, so performance troubleshooting must be accomplished by the tuner and/or installer. (we cannot support)
  • In-tank fine filtration is removed, so external, inline fine filtration must be added for the safety of the injectors. A second OE FPDM must be used and implemented to drive the second pump (do not choose FC2 or FC3)
  • Use 33-029 to adapt OE rail inlet to AN-8 Male
  • Use 33-030 to adapt OE rail inlet to AN-10 Male


NOTES ON RETURN CONFIGURATION
  • Recommended use
  • Requires upgraded feed and return lines, external (fine) filtration, external fuel pressure regulator, and external power supply for fuel pumps. See our complete Hellcat fuel systems
